How to Choose the Right 3D Welding Table for Your Workshop
- Mar 10
- 2 min read
A 3D welding table is one of the most important tools in modern metal fabrication. It helps fabricators create accurate assemblies, improve productivity, and reduce setup time.
However, choosing the right welding table can be confusing because there are many options available, including different sizes, hole systems, materials, and accessories.
In this guide, we will explain how to choose the best 3D welding table for your workshop.
1. Choose the Right Welding Table Size
The first thing to consider is table size.
Welding tables come in many standard dimensions such as:
1000 × 1000 mm
1500 × 1000 mm
2000 × 1000 mm
2400 × 1200 mm
3000 × 1500 mm
Larger tables are ideal for:
• structural frames• machine bases• large fabrication projects
Smaller tables are better for:
• small fabrication shops• prototype welding• precision parts
Many professional workshops combine multiple modular tables to create larger workstations.
2. Select the Right Hole System (System 16 or System 28)
Most modular welding tables use either System 16 or System 28 hole patterns.

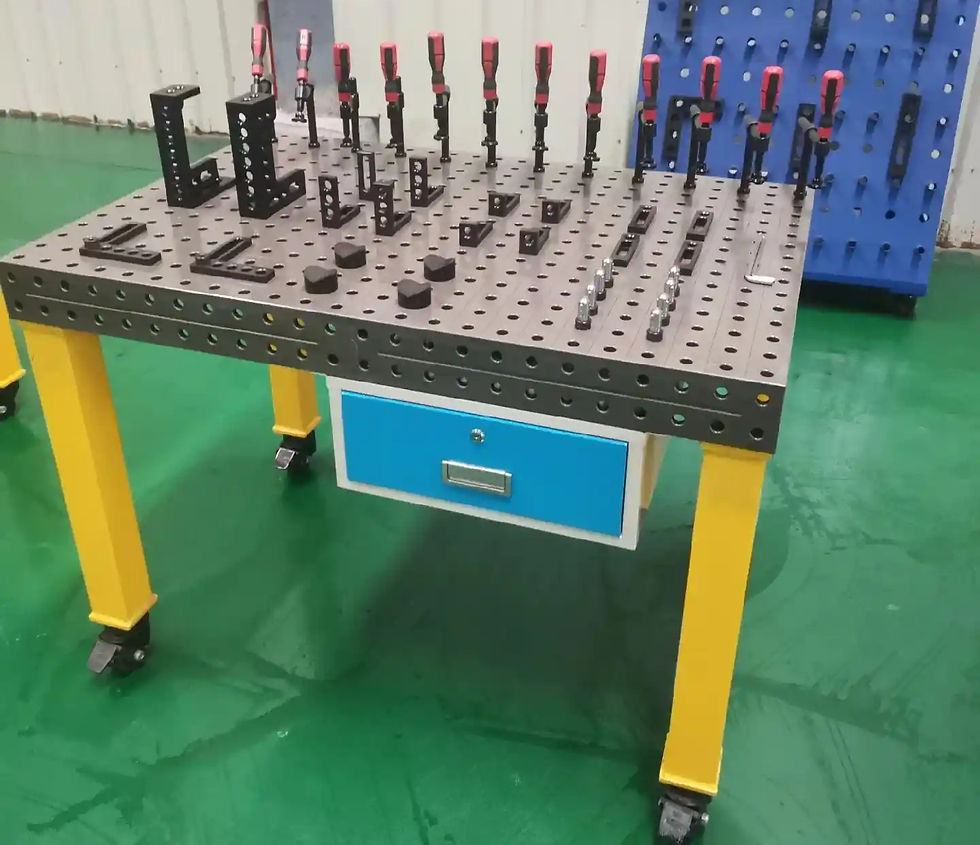

System 16 Welding Table
Features:
• 16 mm holes• 50 mm grid spacing• lighter clamping tools
Best for:
thin materials
light fabrication
precision work
System 28 Welding Table
Features:
• 28 mm holes• 100 mm grid spacing• heavy-duty clamping system
Best for:
heavy steel fabrication
large structures
industrial production
Most professional fabrication shops prefer System 28 welding tables because they offer higher rigidity and stronger clamping.
3. Table Material and Surface Treatment
High-quality welding tables are usually made from Q355 steel plates with precision machining.
Important features include:
• CNC machined surface for flatness• nitrided treatment for wear resistance• high load capacity
A nitrided surface dramatically improves:
resistance to weld spatter
durability
corrosion resistance
This makes the table last much longer in industrial environments.
4. Modular Clamping Accessories
The biggest advantage of a 3D welding table system is the wide range of accessories.
Common fixtures include:
rails and extensions
These accessories allow fabricators to build custom fixtures in minutes.
5. Flatness and Precision
Professional welding tables should have high precision.
Typical tolerances are:
• Flatness: ±0.3 mm per 1000 mm• Hole tolerance: H7• Grid accuracy: ±0.05 mm
High precision ensures accurate assemblies and repeatable production.
Why Many Fabrication Shops Use Modular Welding Tables
Compared with traditional welding benches, modular 3D welding tables offer several advantages:
✔ faster setup✔ higher accuracy✔ repeatable production✔ flexible fixture design✔ improved welding efficiency
That is why they are widely used in industries such as:
automotive fabrication
heavy equipment manufacturing
steel structure fabrication
custom metal workshops
